Product Details:
特點
自動加熱鼓風機溶解油污，並收集到油杯中， 方便清潔
無縫隱藏式油杯設計，保持廚房外觀優雅
超強吸力 高達 1200 立方米/小時排風量，有效去除油煙 和異味，保持空氣清新
油煙機在烹調後9 分鐘自動延長運作 ，徹底去 除烹調後的殘留氣味
纖巧設計摩打，尺寸適合大多數廚櫃，節省廚 房空間
設計
類型 掛牆式T型煙囪
機身顏色 白鋼(不銹鋼)
控制面板顏色 黑色玻璃
控制方式 輕觸式
機身物料 430 不銹鋼
濾網類型 不銹鋼擋板濾網 / 活性碳濾網 (供循環過濾模 式使用)
照明燈 LED燈 (1瓦x2)
產品重量 16 kg 公斤(不含活性碳濾網), 16.5 kg 公斤(含活性 碳濾網)
產品尺寸 W闊 896 mm毫米 x H高 400-780 mm毫米 x D深 505 mm毫米
性能
操作模式 加熱自動清洗, 延緩關機 ( 9分鐘)
最高排風量(無限制) 1200立方米/小時
摩打數量 1
吸力/速度選擇 3
噪音水平 (排風狀態) 79.9dB分貝(A級)
主要功能 加熱自動清洗, 延緩關機 (9分鐘)
技術規格
電源電壓 220-240 V伏, 50/600 Hz赫茲
安全熔絲接線座 13A
排風喉直徑 150mm毫米
電線長度 1800mm毫米
摩打箱尺寸 W闊 303 mm毫米 x H高 290 mm毫米 x D深 275 mm毫米
包裝尺寸 W闊 955 mm毫米 x H高 465 mm毫米 x D深 600 mm毫米
淨重(含包裝) 19.6 kg 公斤(不含活性碳濾網), 20.3 kg 公斤(含活 性碳濾網)
16 kg 公斤(不含活性碳濾網), 16.5 kg 公斤(含活性 碳濾網)
能源效益
能源消耗 143.4 kWh千瓦小時/ annum年
歐洲能源效益 D級
總輸出功率 322W瓦
摩打輸出功率 320W瓦
Features
Self-heating blower dissolves oil and grease and collects it in the grease cup for easy cleaning.
Seamless and hidden grease cup design to maintain the elegant appearance of the kitchen
Superior suction power Up to 1200 cubic metres/hour exhaust capacity, effectively removes grease, smoke and odour, keeping the air fresh and clean.
Automatic extension of the hood after 9 minutes of cooking to completely eliminate odour residue after cooking.
Slim design and compact size fits into most kitchen cabinets to save kitchen space.
Design
Type Wall-mounted T-chimney
Body Colour Stainless Steel
Control Panel Colour Black Glass
Control Method Touch Type
Body Material 430 Stainless Steel
Filter Type Stainless steel baffle filter / activated carbon filter (for recirculation mode)
Lighting LED (1W x 2)
Product weight 16 kg kg (without activated carbon filter), 16.5 kg kg (with activated carbon filter)

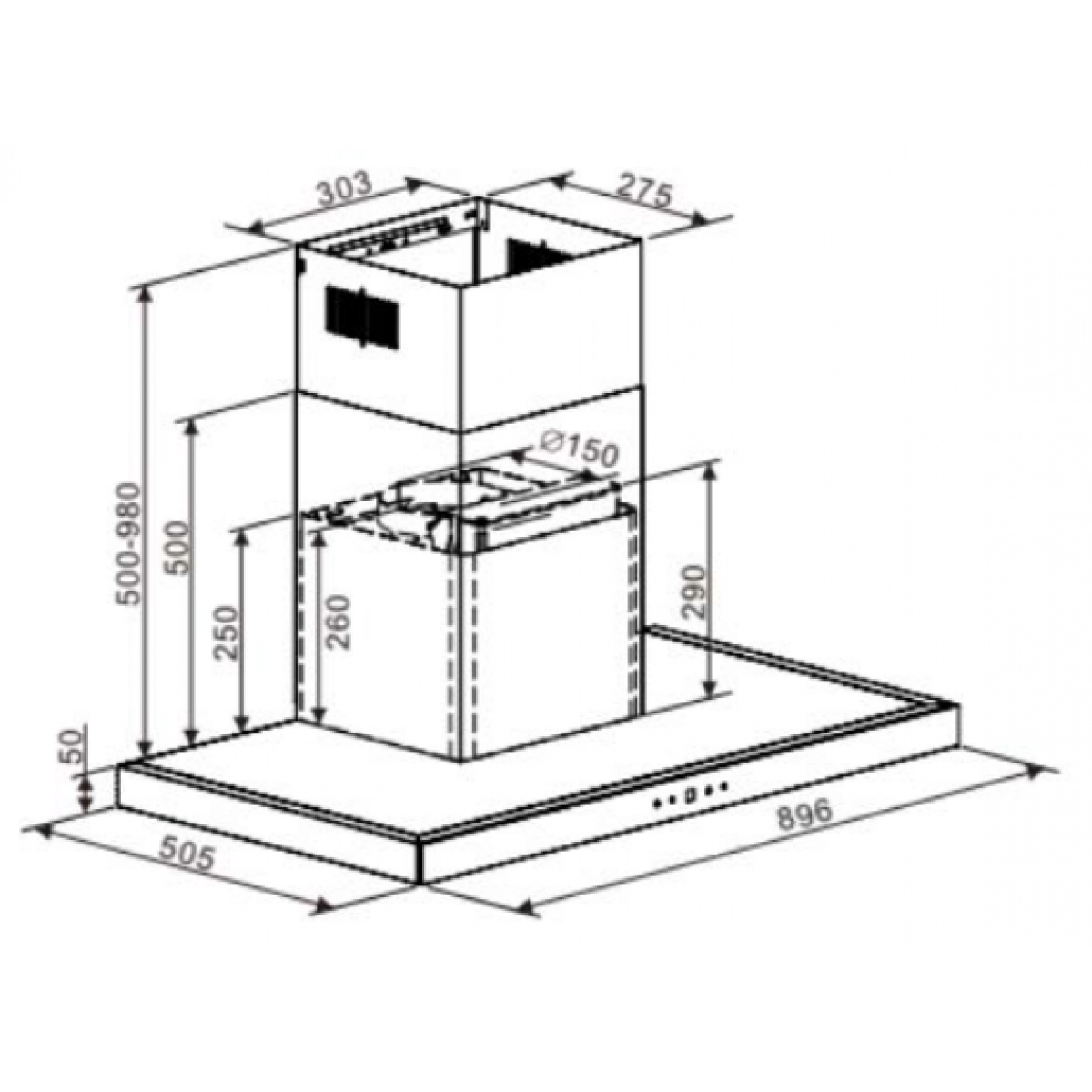

Dimensions W width 896 mm mm x H height 400-780 mm x D depth 505 mm mm
Performance
Operation Mode Heating Auto Wash, Delayed Shutdown (9 mins)
Maximum airflow (unlimited) 1200 cubic metres/hour
Number of motions 1
Suction power/speed selection 3
Noise level (exhaust condition) 79.9dB (Class A)
Main Functions Heated Auto Clean, Delayed Shutdown (9 mins)
Technical specifications
Mains voltage 220-240 V, 50/600 Hz
Safety fuse holder 13A
Diameter of exhaust pipe 150 mm mm
Cable length 1800 mm mm
Dimensions of motorised case W303 mm W x H290 mm H x D275 mm D
Packing Dimensions: W width 955 mm x H height 465 mm x D depth 600 mm.
Net weight (with packaging)
19.6 kg kg (without activated carbon filter), 20.3 kg kg (with activated carbon filter)
16 kg kg (without activated carbon filter), 16.5 kg kg (with activated carbon filter)
Energy efficiency
Energy consumption 143.4 kWh kWh/ annum
European Energy Efficiency Class D
Total output power 322 Watt
Motor output 320W
