Product Details:

◼ 簡易安裝設計
◼ 輕盈舒適拉出設計
◼ 3D面板調節裝置
◼ 緩衝及自關裝置
◼ 掛籃可調高度

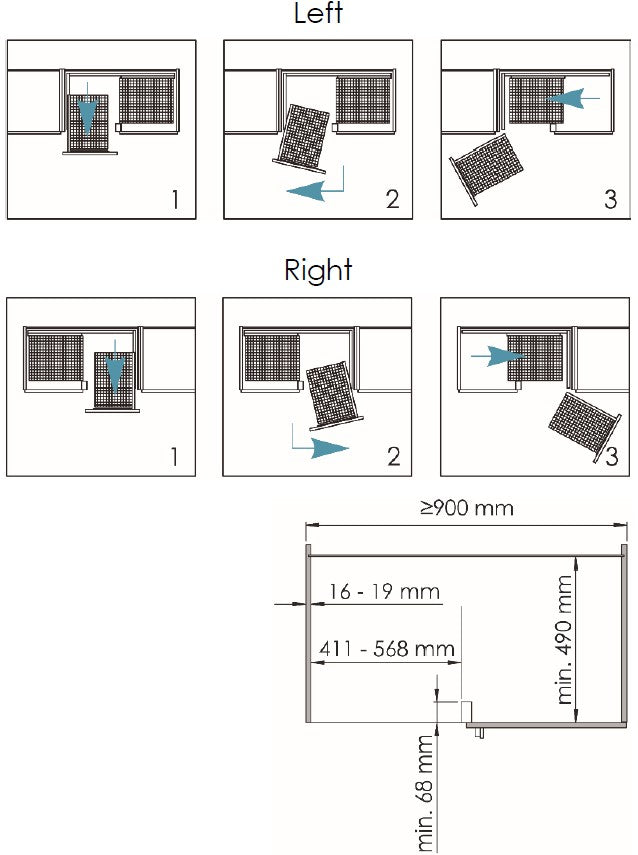

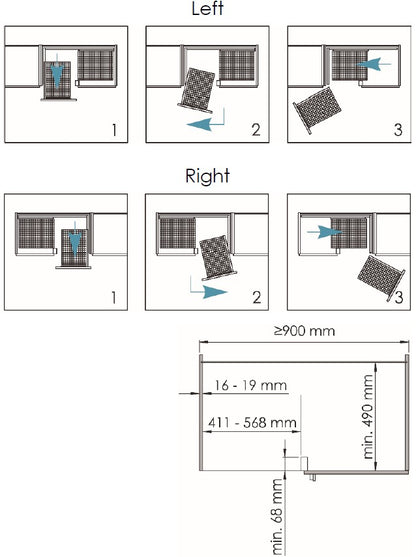

◼最少櫃內深度: 490mm

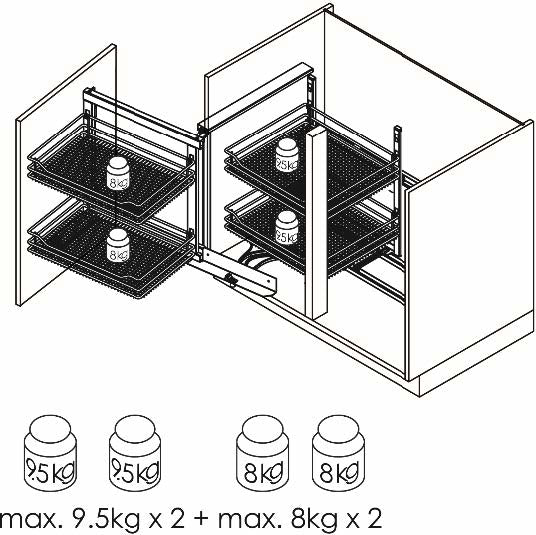

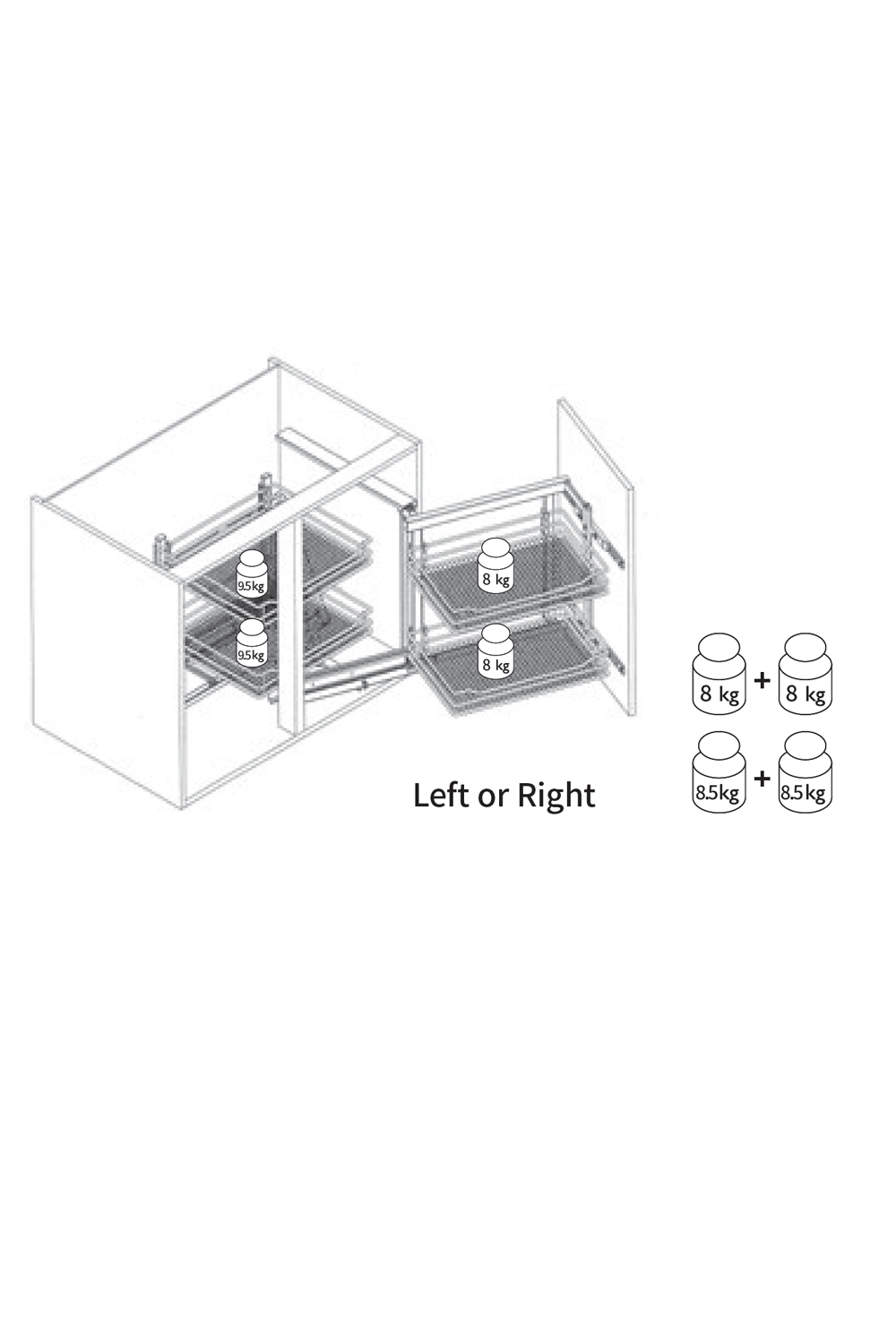

Full opening swing 165°, Total maximum weight 35kg.
全展165度大角度拉出, 全展緩衝自關, 35kg負重

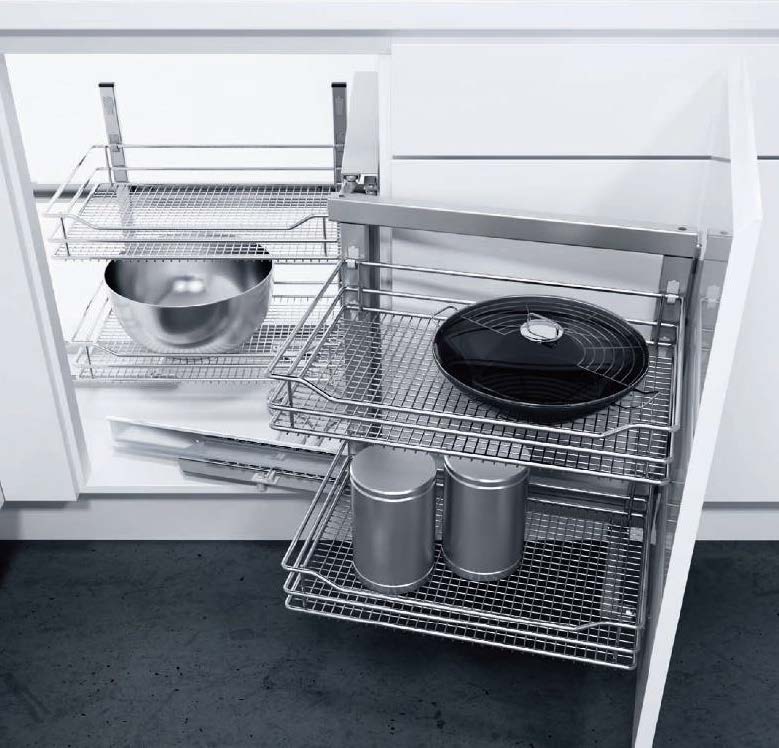

WACO-L Waro Corner - Left 轉角架 - 左 (緩衝型)
Cabinet interior HxWxD mm: 530 x 862 x 490

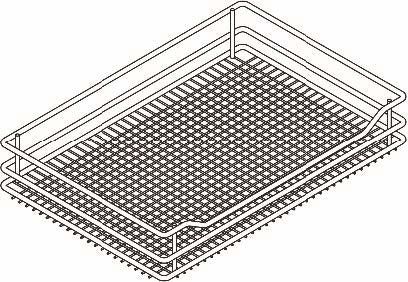

Large Baskets, Small Baskets x 2pcs each 大籃 / 小籃 各2個

WACO-R Waro Corner - Right 轉角架 - 右 (緩衝型)
Cabinet interior HxWxD mm: 530 x 862 x 490
Large Baskets, Small Baskets x 2pcs each 大籃 / 小籃 各2個

WACO-SG-L Waro Corner - Glass - Left 玻璃轉角架 - 左 (緩衝型)
Cabinet interior HxWxD mm: 530 x 862 x 490
Large Baskets, Small Baskets x 2pcs each 大籃 / 小籃 各2個

WACO-SG-R Waro Corner - Glass - Right 玻璃轉角架 - 右 (緩衝型)
Cabinet interior HxWxD mm: 530 x 862 x 490
Large Baskets, Small Baskets x 2pcs each 大籃 / 小籃 各2個
